Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1170 Nameplate RPM MPN:36VE89
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692286

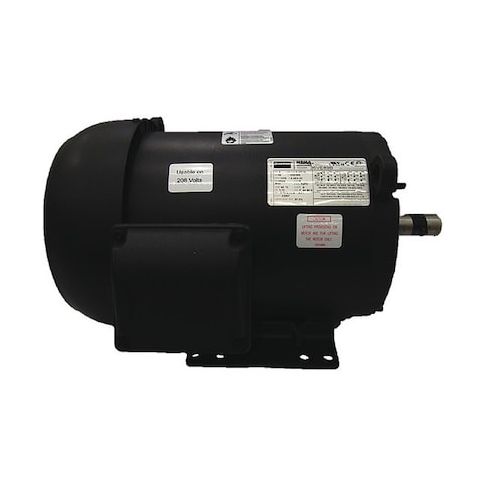

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1170 Nameplate RPM
This Dayton 1.5 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its rigid base mounting type ensures stable and secure operation. With a nameplate RPM of 1170 and a service factor of 1.15, this motor is suitable for continuous duty applications. Its high efficiency and durable ball bearings make it an ideal choice for applications requiring high performance and reliability, such as manufacturing, material handling, and pumping systems.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Pumps and water treatment equipment
- Fans and blowers for industrial ventilation systems
- Conveyor systems and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1170, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.5/2.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.50
- Package Height: 12.50
- Package Weight: 74.00
Product info last updated on January 26, 2026 11:34pm UTC
Category: Motors
