Three-Phase General Purpose Motor, 1 HP, 182/4 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:36VE91
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692277

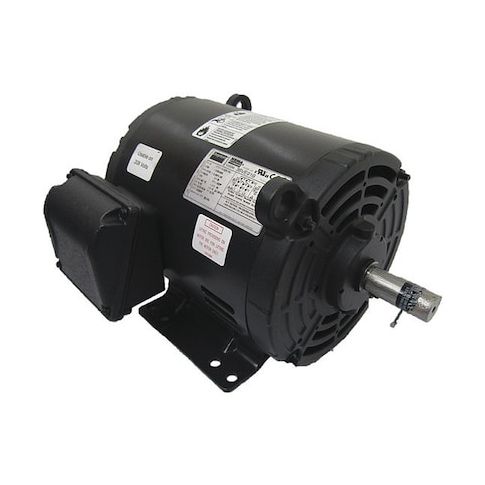

Three-Phase General Purpose Motor, 1 HP, 182/4 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 1 HP, 3-phase general purpose motor from Dayton is a reliable and efficient solution for various industrial applications. Suitable for continuous duty, it operates at 1,770 nameplate RPM and features a rigid base motor mounting type for stable performance. With a high service factor of 1.15, this motor can handle demanding tasks while minimizing downtime. Its open drip-proof design and Class F insulation ensure reliable operation in harsh environments. Ideal for use in factories, warehouses, and other industrial settings, this motor is a cost-effective and efficient choice for applications such as conveyor systems, pumps, and fans.
Top product features:
- Three-phase operation for efficient power distribution
- Ball bearings for smooth and quiet operation
- CW/CCW motor shaft rotation for flexibility in installation and use
Top product applications:
- Pumps and other water handling equipment
- Conveyor systems and material handling equipment
- Fans and blowers for industrial ventilation systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1,770, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.7/1.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.40
- Package Height: 12.40
- Package Weight: 59.00
Product info last updated on April 5, 2026 9:13am UTC
Category: Motors
