Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:36VE92
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692268

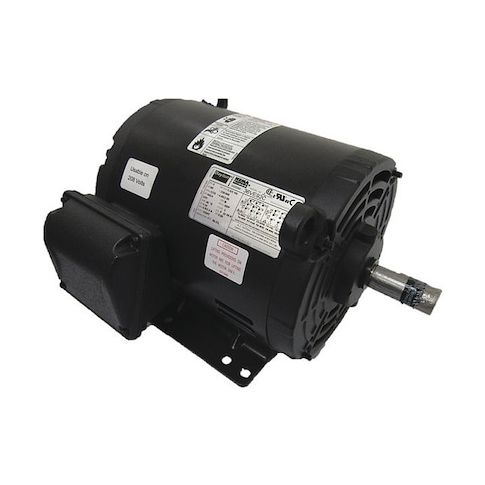

Three-Phase General Purpose Motor, 1 1/2 HP, 182/4 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 1.5 HP three-phase general purpose motor is designed for a variety of applications, including industrial and commercial settings. Its open drip proof motor enclosure design provides protection from dust and water, making it suitable for use in harsh environments. With a nameplate RPM of 1,770 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks. Its high efficiency and continuous duty rating make it an ideal choice for applications such as pumps, fans, and conveyor systems. The motor's compact design and rigid base mounting make it easy to install and integrate into existing systems.
Top product features:
- Three-phase operation
- Open drip-proof motor enclosure design
- Ball motor bearings
Top product applications:
- Industrial machinery
- Pumps and compressors
- Material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1,770, Frame 182/4, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.1/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 14.50
- Package Height: 12.30
- Package Weight: 57.50
Product info last updated on February 5, 2026 8:38am UTC
Category: Motors
