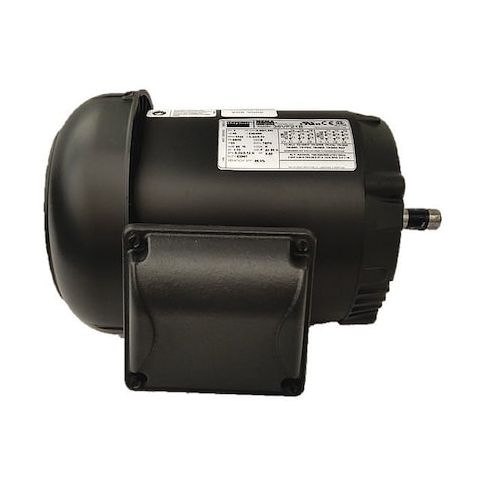

Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 1745 Nameplate RPM MPN:36VF21
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692240
Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 1745 Nameplate RPM
This three-phase general purpose motor is designed for a wide range of industrial applications, including manufacturing, food processing, and material handling. Its 2 HP rating and 1745 nameplate RPM make it suitable for continuous duty operation, while its totally enclosed fan cooled motor enclosure design ensures reliable performance in harsh environments. The motor's rigid base and C-face mounting type provide a secure and easy installation. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor is ideal for applications requiring high efficiency and durability, such as conveyor systems, pumps, and fans.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Conveyor Systems
- Industrial HVAC Systems
- Pump Applications
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1745, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.7/2.8 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.90
- Package Width: 11.70
- Package Height: 10.40
- Package Weight: 40.59
Product info last updated on February 1, 2026 12:34pm UTC
Category: Motors
