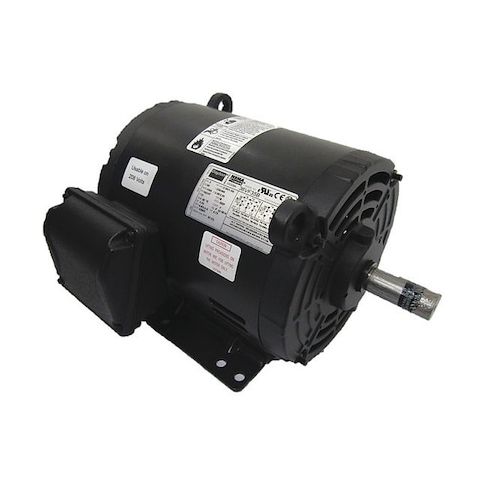

Three-Phase General Purpose Motor, 2 HP, 182/4T Frame, 230/460V AC Voltage, 1165 Nameplate RPM MPN:36VF35
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692198
Three-Phase General Purpose Motor, 2 HP, 182/4T Frame, 230/460V AC Voltage, 1165 Nameplate RPM
This 2 HP three-phase general purpose motor from Dayton is designed for reliable performance in a variety of applications. Suitable for use in industrial settings, it features an open drip-proof motor enclosure and rigid base mounting type for secure installation. With a nameplate RPM of 1165 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding conditions. Its high efficiency and continuous duty rating make it an ideal choice for applications such as pumps, fans, and conveyor systems, where reliability and performance are critical.
Top product features:
- Three-phase operation allows for efficient use of power and reduced energy costs.
- Open drip-proof motor enclosure design provides protection against dust and moisture.
- Ball bearings enable smooth and quiet motor operation.
Top product applications:
- Industrial automation systems
- Pumps and pumping systems
- Conveyor systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1165, Frame 182/4T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.9/2.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.30
- Package Width: 14.60
- Package Height: 12.30
- Package Weight: 71.00
Product info last updated on January 23, 2026 3:22pm UTC
Category: Motors
