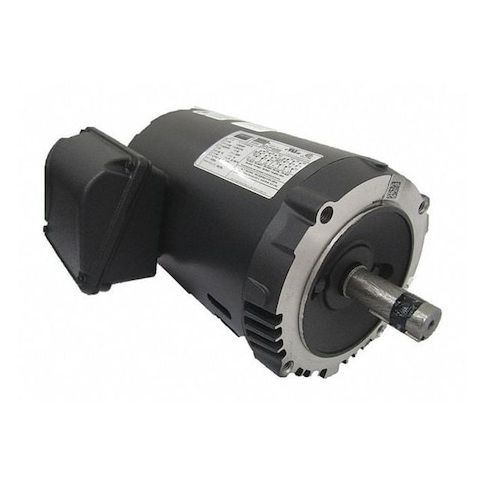

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1745 Nameplate RPM MPN:36VF49
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692189
Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1745 Nameplate RPM
This 2 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 1745, this motor provides efficient and reliable performance in continuous duty applications. The open drip proof motor enclosure design ensures protection from dust and water, while the ball motor bearings provide smooth operation. Ideal for use in conveyor systems, pumps, and fans, this motor is also suitable for applications requiring high torque and low vibration. Its high efficiency and durable design make it a reliable choice for demanding industrial and commercial environments.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy losses.
- Ball bearings provide smooth and long-lasting motor operation.
- Continuous duty capability enables the motor to operate for extended periods without overheating.
Top product applications:
- Industrial Pump
- Conveyor Systems
- Air Compressor
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1745, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 12.10
- Package Height: 9.30
- Package Weight: 40.70
Product info last updated on January 27, 2026 2:21am UTC
Category: Motors
