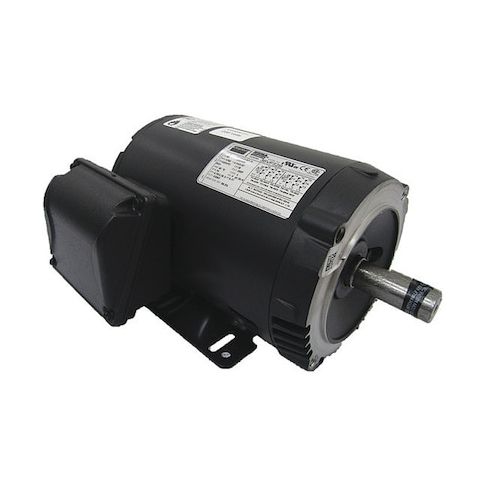

Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 1760 Nameplate RPM MPN:36VF52
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692170
Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 1760 Nameplate RPM
This Dayton 1.5 HP three-phase general purpose motor is a reliable and efficient solution for various industrial applications. Suitable for continuous duty, it operates at 1760 nameplate RPM and has a maximum ambient temperature of 40 degrees C. The motor features a rigid base and C-face mounting type, making it easy to integrate into existing systems. With a service factor of 1.15 and ball bearings, it provides long-lasting performance. Its high efficiency of 86.5% reduces energy consumption and operating costs. Ideal for use in manufacturing, processing, and material handling, this motor is a cost-effective and dependable choice for a range of applications.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure design for protection against environmental contaminants
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Pumps
- Textile Machinery
- Paper Mill Machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1760, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.1/2.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.00
- Package Height: 9.50
- Package Weight: 45.00
