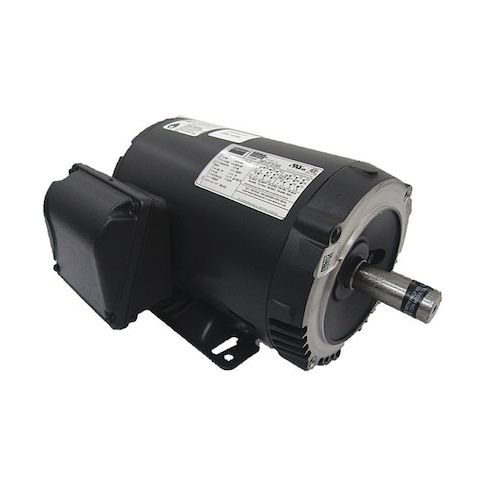

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1740 Nameplate RPM MPN:36VF53
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692161
Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1740 Nameplate RPM
This 2 HP three-phase general purpose motor from Dayton is designed for a variety of industrial applications, including conveyor systems, pumps, and fans. With a nameplate RPM of 1740 and a high efficiency rating of 86.5%, this motor provides reliable and efficient power. The open drip-proof motor enclosure design and rigid base ensure durability and stability, while the ball motor bearings provide smooth operation. Suitable for continuous duty, this motor is ideal for applications requiring high torque and power. Its compact size and low weight make it easy to integrate into existing systems, making it a versatile and reliable choice for industrial use.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip proof motor enclosure design for protection against dust and water
- Ball motor bearings for smooth and durable operation
Top product applications:
- Industrial conveyor systems
- Pump drives in chemical processing
- Textile machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1740, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.3/2.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.20
- Package Width: 12.20
- Package Height: 9.40
- Package Weight: 42.20
Product info last updated on March 19, 2026 5:18pm UTC
Category: Motors
