Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1765 Nameplate RPM MPN:36VF57
Free Shipping
In Stock

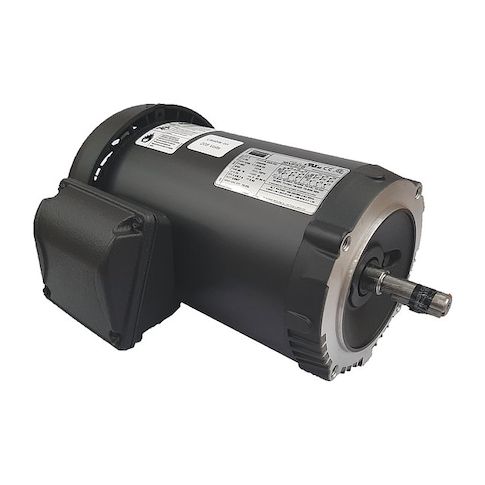

This Dayton 1/3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial settings. Its totally enclosed fan cooled motor enclosure ensures reliable operation in harsh environments, while its steel frame provides durability and long-lasting performance. With a nameplate RPM of 1765 and a nominal efficiency of 74%, this motor delivers consistent power and reduces energy consumption. Suitable for continuous duty, it's an ideal choice for applications such as pumps, fans, and conveyor systems. Its compact size and CE, CSA, and UL certifications make it a reliable and efficient solution for various industrial needs.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Ball Motor Bearings
Top product applications:
- Pumps and compressors for industrial applications
- Fans and blowers for HVAC and industrial systems
- Conveyors and material handling equipment
The DAYTON - 36VF57 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It functions by converting electrical energy into mechanical energy to operate various types of machinery. Its versatility allows it to be utilized across diverse sectors, from manufacturing lines to HVAC systems.
Key Features of the DAYTON - 36VF57 General Purpose Motor:
- Duty Cycle: The motor is designed for a continuous duty cycle, which may be indicative of its potential performance in industrial applications.
- Frame: The frame size is 56C, conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: Full load amps are rated at 1.2/0.62 A
- these values should be considered when determining power supply requirements.
- Green Certification or Other Recognition: NEMA Premium Rated
- this acknowledgment means that the motor meets certain environmental and energy efficiency standards.
- Inverter Rated: Yes - indicates compatibility with powering by a variable frequency drive which could potentially allow control over speed and torque.
- Motor Enclosure Design: Totally Enclosed Fan Cooled design protects internal components from environmental factors while also determining its cooling method
- Motor Service Factor: Listed as 1.15
- it's an indication of potential additional capacity beyond rated power during temporary overload conditions
- Nameplate RPM: Indicated to operate at a speed of 1765 RPM under full load conditions according to the factory-installed nameplate
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.00
- Package Height: 9.50
- Package Weight: 26.00
