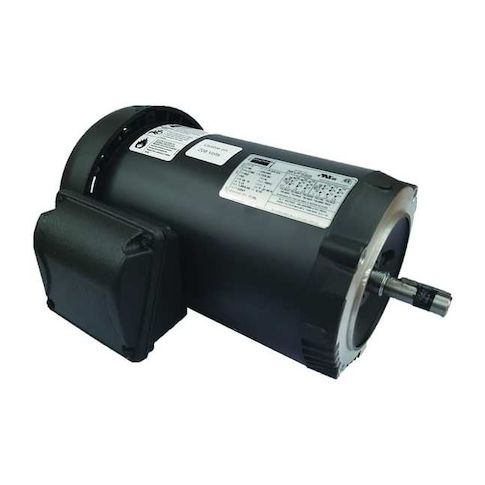

Three-Phase General Purpose Motor, 1/2 HP, 56C Frame, 230/460V AC Voltage, 1760 Nameplate RPM MPN:36VF58
Free Shipping
In Stock
This 1/2 HP three-phase general purpose motor is designed for a wide range of applications, including industrial equipment, pumps, and fans. With a totally enclosed fan-cooled design, it operates efficiently and reliably in harsh environments. The motor's 1760 RPM and 230/460V AC voltage make it suitable for various applications, while its 1.7/0.86 A full load amps ensure safe and efficient operation. Its 77% nominal efficiency and continuous duty rating make it an ideal choice for demanding industrial applications. Suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- Totally enclosed fan cooled motor design provides a safe and reliable operating environment.
- Ball motor bearings enable smooth and quiet operation with reduced maintenance needs.
Top product applications:
- Pumps and water treatment systems
- Conveyor belts and material handling systems
- Industrial fans and blowers
The DAYTON - 36VF58 is a General Purpose Motor, which falls under the category of 3-Phase AC Motors. These motors are widely used in industrial and commercial settings for power transmission and pneumatics applications. They convert electrical energy into mechanical energy to operate various types of machinery. Their versatility makes them suitable for use across different sectors, from manufacturing lines to HVAC systems.
Key Features of the DAYTON - 36VF58 General Purpose Motor:
- Duty Cycle: This motor is designed for a continuous duty cycle, which may be beneficial in certain industrial applications.
- Frame: The frame size is 56C, conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: The specified full load amps are 1.7/0.86 A, important information for determining appropriate power supply requirements.
- Green Certification or Other Recognition: NEMA Premium Rated – this certification indicates that the motor meets certain environmental and energy efficiency standards.
- Inverter Rated: Yes - this indicates compatibility with powering via a variable frequency drive, which could allow more control over speed and torque.
- Motor Bearings: This model uses ball bearings intended to facilitate smoother operation under different load conditions.
- Motor Enclosure Design: Features a Totally Enclosed Fan Cooled design intended to shield internal components from environmental factors while also offering a cooling method
- Motor Mounting Position & Type : This model can be mounted horizontally using C-Face mounting type
- Nameplate RPM & No.of Speeds : Designed to operate at nameplate RPM of 1760 with single speed setting
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 27.50
