Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 3520 Nameplate RPM MPN:36VF61
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692100

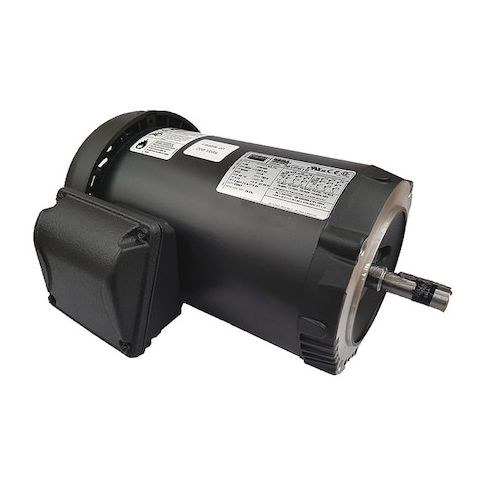

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 3520 Nameplate RPM
This Dayton 1 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a totally enclosed fan-cooled motor enclosure and ball bearings, it provides reliable operation and long lifespan. The motor's high service factor and continuous duty rating make it suitable for demanding applications. Its 77.5% nominal efficiency also helps reduce energy costs. Ideal for use in factories, warehouses, and other industrial settings, this motor is CSA and UL certified, ensuring compliance with industry standards. Its compact 56C frame and CW/CCW rotation make it easy to integrate into existing systems.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan-cooled design provides a cooler operating environment and increased motor lifespan.
- Ball bearings reduce friction and wear, resulting in smoother operation and longer motor life.
Top product applications:
- Industrial conveyor systems
- Pumps and pumping stations
- Textile machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 3520, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.8/1.4 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Shaft Key
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.25
- Package Width: 11.00
- Package Height: 9.50
- Package Weight: 28.00
Product info last updated on February 1, 2026 5:02am UTC
Category: Motors
