Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 1760 Nameplate RPM MPN:36VF68
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692058

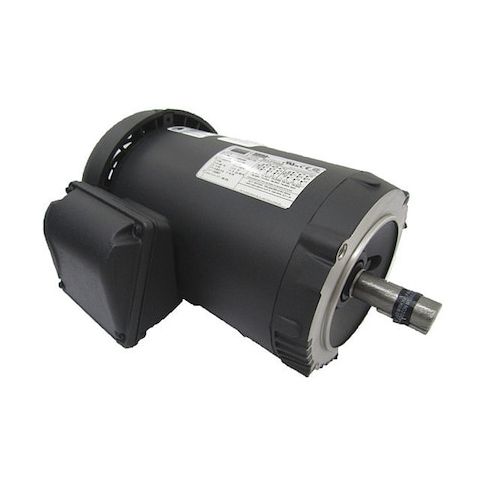

Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 1760 Nameplate RPM
This Dayton 1.5 HP three-phase general purpose motor is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. Its totally enclosed fan-cooled design provides reliable operation in harsh environments, while its ball bearings and steel frame ensure durability and long lifespan. With a high efficiency rating of 86.5%, this motor helps reduce energy costs and minimize environmental impact. Suitable for continuous duty, it's ideal for use in applications such as conveyor systems, pumps, and fans, and is certified to meet CSA and UL standards for added safety and assurance.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan-cooled motor enclosure design provides a reliable and long-lasting cooling system.
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pump applications
- Industrial machinery
- Conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1760, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.3/2.1 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.75
- Package Height: 12.50
- Package Weight: 44.00
Product info last updated on February 16, 2026 5:13am UTC
Category: Motors
