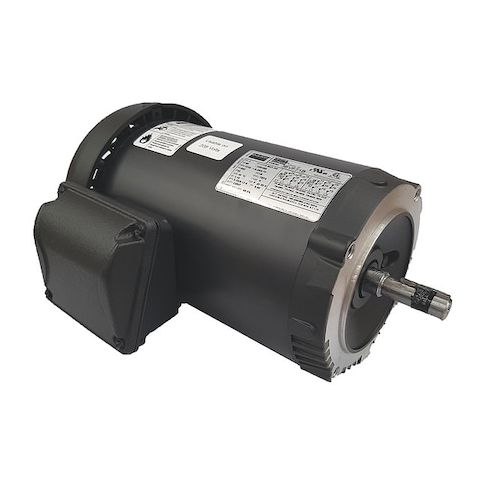

Three-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 1745 Nameplate RPM MPN:36VF71
Free Shipping
In Stock
This 2 HP, 3-phase general purpose motor from Dayton is designed for a wide range of applications requiring reliable and efficient power. With a nameplate RPM of 1745 and a frame size of 56C, this motor is suitable for use in industrial settings, such as manufacturing, material handling, and HVAC systems. Its totally enclosed fan cooled design ensures quiet operation and long motor life, while its ball bearings and steel frame provide smooth and durable performance. Perfect for continuous duty applications, this motor offers a high level of efficiency and reliability, making it an ideal choice for demanding industrial environments.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled motor enclosure design helps to prolong motor lifespan by reducing heat buildup and improving reliability.
- Ball motor bearings provide a smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial conveyor systems
- Material handling equipment
- Pumps and pumping systems
The DAYTON - 36VF71 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed for industrial and commercial applications, converting electrical energy into mechanical energy to operate various types of machinery. Its versatility allows it to be used across different sectors including manufacturing lines and HVAC systems.
Key Features of the DAYTON - 36VF71 General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor is designed for continuous operation under specified conditions. Its performance may vary based on application and usage.
- Frame: The frame size is 56C conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: The product's specifications indicate a maximum current draw of 5.44 / 2.72 A under full load conditions, which should be considered when determining power supply requirements.
- Inverter Rated: Yes - this indicates compatibility with variable frequency drives, enabling potential control over speed and torque depending on the specific setup.
- Nominal Efficiency: The product has an efficiency rating of 86.5% as per manufacturer's specifications under standard test conditions.
- Voltage Compatibility: According to its design specifications, it is rated for operation within voltage ranges from 200-230/440V AC up to 208-230/460V AC."
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.70
- Package Width: 11.60
- Package Height: 10.40
- Package Weight: 39.40
