Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 1750 Nameplate RPM MPN:36VF89
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0691945
Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 230/460V AC Voltage, 1750 Nameplate RPM

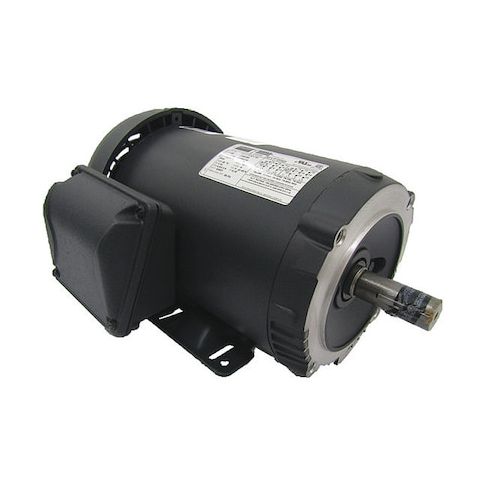

This 1.5 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled design ensures reliable operation in harsh environments, while its rigid base and C-face mounting type provide stability and ease of installation. With a nameplate RPM of 1750 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks. Its high efficiency and continuous duty rating make it an ideal choice for applications such as pumps, fans, and conveyor systems, where reliability and performance are paramount.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings for Smooth Operation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment systems
- Manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1750, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 11.25
- Package Height: 9.50
- Package Weight: 41.00
