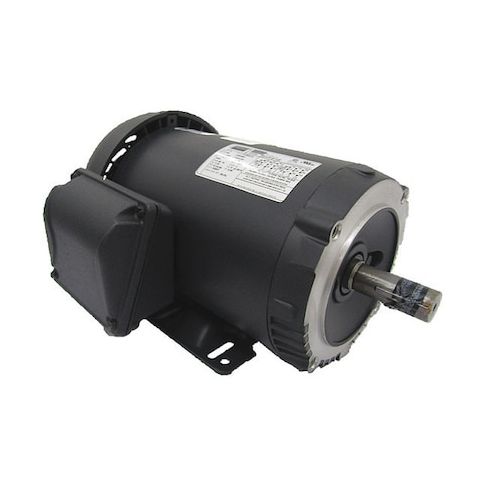

Three-Phase General Purpose Motor, 3 HP, 143/5TC Frame, 230/460V AC Voltage, 3490 Nameplate RPM MPN:36VF91
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0691927
Three-Phase General Purpose Motor, 3 HP, 143/5TC Frame, 230/460V AC Voltage, 3490 Nameplate RPM
The Dayton 3 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of industrial applications. Designed for continuous duty, this motor operates at 3490 nameplate RPM and features a totally enclosed fan cooled design for optimal performance and durability. With a service factor of 1.15 and a maximum ambient temperature of 40 degrees C, this motor can withstand demanding environments. Its rigid base and C-face motor mounting type ensure easy installation and flexibility. Ideal for use in manufacturing, processing, and other industrial settings, this motor offers a high level of efficiency and reliability.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Totally Enclosed Fan Cooled Motor Enclosure for Reliable Cooling and Reduced Maintenance
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3490, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.1/3.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.25
- Package Height: 12.62
- Package Weight: 49.00
Product info last updated on January 28, 2026 10:50pm UTC
Category: Motors
