DC Gearmotor, 1, 112 in-lb Max. Torque, 20 RPM Nameplate RPM, 90V DC Voltage MPN:6Z413
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0672691

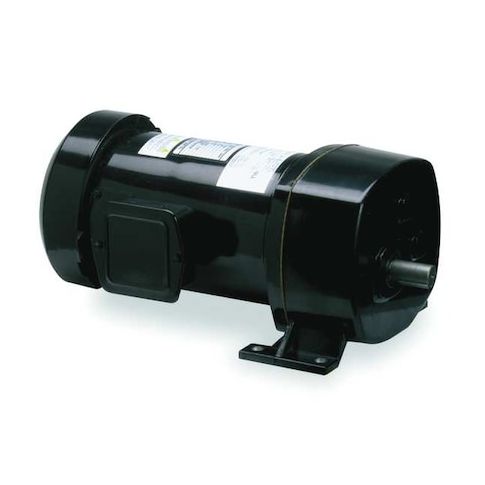

DC Gearmotor, 1, 112 in-lb Max. Torque, 20 RPM Nameplate RPM, 90V DC Voltage
This heavy-duty DC gearmotor is designed for demanding applications that require precise control and high torque. With a maximum torque of 1,112 in-lb and a nameplate speed of 20 RPM, it's ideal for use in packaging, material handling, and manufacturing environments. Its permanent magnet DC motor and heavy-duty ball and thrust bearings ensure reliable operation in harsh conditions. The motor's totally enclosed fan-cooled design and any-angle mounting orientation provide flexibility and ease of integration. Perfect for applications such as conveyor systems, robotic arms, and precision machinery, this gearmotor delivers reliable performance and long-lasting durability.
Top product features:
- Totally Enclosed Fan-Cooled Motor Enclosure
- Permanent Magnet DC Motor Type
- 87:1 Gear Ratio for High Torque Output
Top product applications:
- Conveyor systems for small parts or light materials
- Material handling systems for warehouses or distribution centers
- Automated assembly lines for precision machinery
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Fan-Cooled, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 20 RPM, Maximum Torque 1,112 in-lb, Overhung Load Capacity 325 lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Gear Ratio 87:1, Input Horsepower 1/2 hp, Output Shaft Diameter 3/4 in, Bearing Type Ball on Motor, Heavy Duty Ball and Thrust Balls on Case
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.80
- Package Width: 19.30
- Package Height: 9.80
- Package Weight: 34.55
Product info last updated on February 10, 2026 1:54pm UTC
Category: Motors
