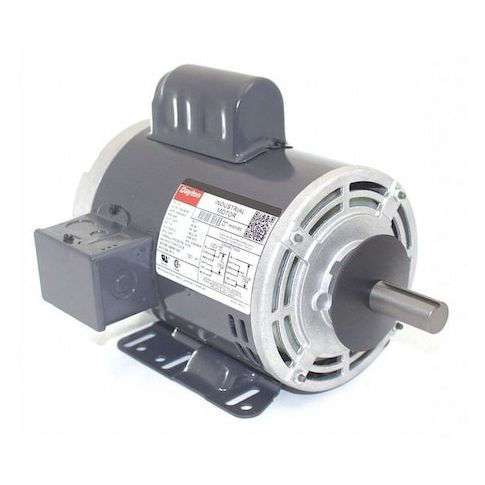

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 143T Frame MPN:6K630
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0664115
Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 143T Frame
This 1.5 horsepower capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and high efficiency make it suitable for continuous duty cycles. The motor's open drip-proof enclosure protects against dust and moisture, while its rigid base mounting type provides stability. With a nameplate RPM of 3,450, this motor is ideal for applications requiring high speed and torque. Its compact 143T frame and 115/208-230V AC voltage make it a versatile choice for various industries, including manufacturing, HVAC, and food processing.
Top product features:
- Capacitor-start design for improved starting torque and efficiency
- Single-phase operation for easy installation and integration with existing systems
- Open drip-proof enclosure for protection against dust and water splashes
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment systems
- Fans and blowers in HVAC applications
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 18.6/9.8-9.3 A, 143T Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 27.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 6, 2026 12:39pm UTC
Category: Motors
