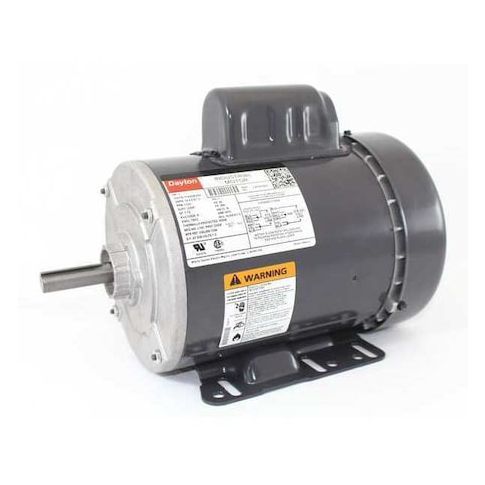

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56H Frame
This Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. With a 1 hp rating and 1,725 RPM, it's perfect for use in industrial settings, such as manufacturing and material handling. The motor's capacitor-start design provides a high starting torque, making it ideal for applications that require a boost of power. Its totally enclosed fan-cooled design ensures a long lifespan and easy maintenance. Suitable for continuous duty cycles, this motor is a great choice for applications where reliability and efficiency are paramount.
Top product features:
- Totally Enclosed Fan Cooled design provides improved motor protection and reduced noise levels.
- Motor Thermal Protection is not provided, requiring users to implement additional cooling measures.
- Usable at 208V operation allows for flexibility in voltage selection.
Top product applications:
- Air Compressor
- Pump
- Fan
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/6.9-7.0 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 40.00
