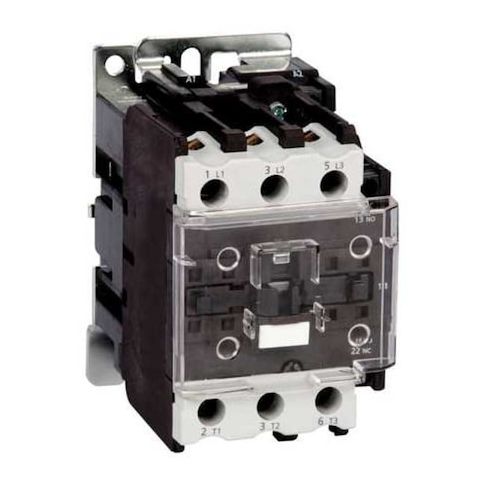

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing MPN:6EAR3
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient switching device ideal for various applications in industrial and commercial settings. It's perfect for controlling current flow in one direction, making it suitable for use in conveyor systems, pumps, and other machinery. With its 3-pole design and 24V AC coil, it can handle high inductive loads up to 65A and resistive loads up to 80A. Additionally, it meets CSA and UL standards, ensuring safe and compliant operation. Its compact size and non-reversing action make it an excellent choice for applications where precise control is necessary.
Top product features:
- Non-Reversing action controls current flow in one direction
- 3-pole switching device
- 2 auxiliary contacts arranged as 1NO/1NC
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device with a 24 V AC coil. It features two auxiliary contacts arranged as 1NO/1NC (2 total) and is rated for use within the specified standards. The unit does not include surge suppression or enclosure, and it is rated for operation within the specified frequency range.
- Action: Non-Reversing (controls current flow in one direction)
- - Poles: 3
- - Coil Voltage: 24 V AC
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Embedded Surge Suppressor: No
- - Enclosure: No Enclosure
- - Frequency: 50/60 Hz
- - Rated for use up to 65 A inductive
- 80 A resistive under specified conditions
- - Rated according to the listed voltage and horsepower specifications:
- - 1 Phase, 120 V: 5 hp - 1 Phase, 230 V: 10 hp - 1 Phase, 240 V: 10 hp - 3 Phase, 208 V: 20 hp - 3 Phase, 240 V: 20 hp - 3 Phase, 480 V: 50 hp - 3 Phase, 575 V: 50 hp - 3 Phase, 600 V: 50 hp
- - Dimensions: 2.95 in W x 2.95 in H x 4.6 in D
- - Standards: CSA, UL Listed
- - Reversing: No
- - Item: IEC Magnetic Contactor
- - NEMA Enclosure Rating: No Enclosure
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 5.10
- Package Height: 3.00
- Package Weight: 1.75
