Washdown Motor, 3 Ph, TEFC, 1 HP, 1750 rpm MPN:4GPR9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0649074

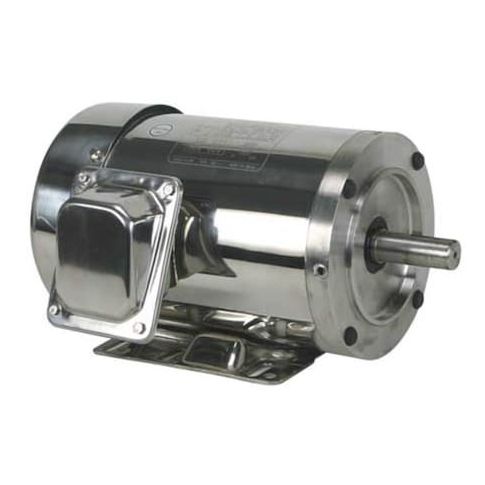

Washdown Motor, 3 Ph, TEFC, 1 HP, 1750 rpm
The Dayton 1 HP, 1750 rpm, three-phase washdown motor is designed for use in harsh environments where high cleanliness is required. Its totally enclosed fan-cooled (TEFC) design and NEMA Design B rating make it suitable for applications such as food processing, pharmaceutical manufacturing, and chemical handling. The motor's continuous duty cycle and 1.15 service factor ensure reliable operation even in demanding conditions. Its compact size and low weight make it easy to install and maintain, while its use of 230/460V AC power reduces energy consumption. Ideal for applications where cleanliness and reliability are paramount.
Top product features:
- Totally Enclosed Fan Cooled design
- Three-Phase motor design
- Continuous duty cycle
Top product applications:
- Pump motor for chemical processing plants
- Washdown duty motor for food processing equipment
- High-torque motor for heavy-duty machinery in manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 10.70
- Package Height: 9.40
- Package Weight: 38.12
Product info last updated on February 7, 2026 9:12pm UTC
Category: Motors
