Washdown Motor, 3 Ph, TEFC, 15 HP, 3520 rpm MPN:2DAN1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0643754

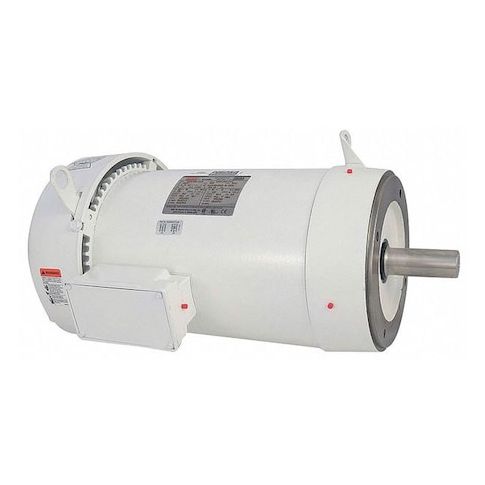

Washdown Motor, 3 Ph, TEFC, 15 HP, 3520 rpm
This 15 HP, three-phase washdown motor from Dayton is designed for high-pressure cleaning applications in harsh environments. Its totally enclosed fan-cooled (TEFC) design and 1.15 service factor ensure reliable operation in demanding conditions. The motor's 3,540 RPM and 35.0/17.4 A rating provide efficient power delivery. Suitable for use in food processing, pharmaceutical, and other industries where sanitation is critical. Its compact size and horizontal mounting make it easy to integrate into existing systems. The motor's NEMA Design B rating and Class F insulation ensure long lifespan and protection against overheating. Ideal for continuous duty cycles.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle Capability
Top product applications:
- Water treatment plants
- Food processing facilities
- Pharmaceutical manufacturing plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 3,540 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 35.0/17.4 A, 215TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.50
- Package Height: 15.00
- Package Weight: 154.00
Product info last updated on February 23, 2026 10:13am UTC
Category: Motors
