Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1740 rpm MPN:1TRZ5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0625965

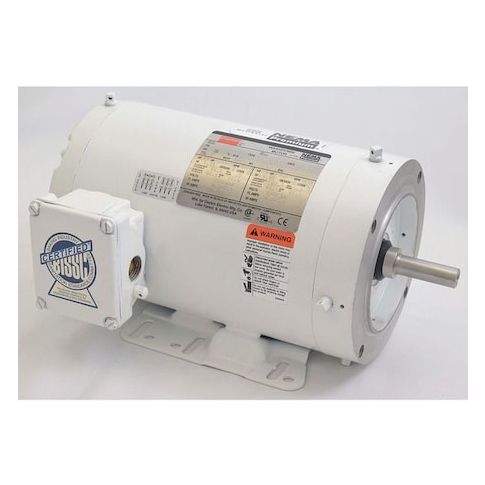

Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1740 rpm
This 3-phase washdown motor from Dayton is designed for use in harsh environments where high pressure washdowns are required. With a 1-1/2 HP rating and 1740 rpm, it provides reliable operation in applications such as food processing, pharmaceuticals, and other industries where cleanliness is paramount. Its TENV (Totally Enclosed Non-Ventilated) design and Class F insulation ensure long motor life and protection from the elements. Suitable for continuous duty cycles, this motor is ideal for applications requiring high torque and resistance to corrosive substances, making it a valuable addition to any facility requiring efficient and reliable operation.
Top product features:
- Totally Enclosed Non-Ventilated (TENV) design provides a safe and clean environment for operation
- Operates at 1740 rpm for efficient and precise control
- Has a 1-1/2 HP rating for heavy-duty applications
Top product applications:
- Food processing equipment
- Pump drives in chemical plants
- Water treatment facilities
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 4.3/2.1 A, 56HC Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 26.00
Product info last updated on February 7, 2026 4:02pm UTC
Category: Motors
