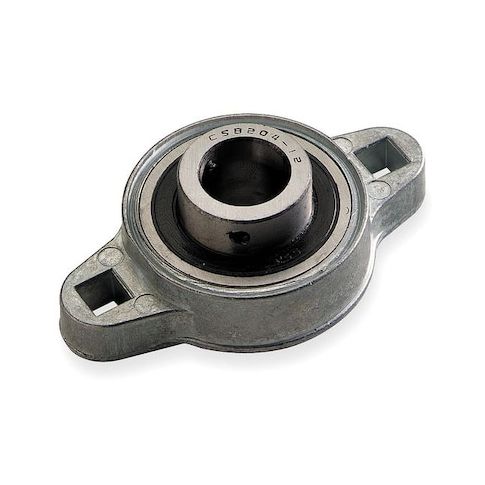

2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1/2 in Dia, Cast Iron, Set Screw MPN:1A396
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0623725
2 Holes, Rhombus Housing, 2 Bolt Flange Bearing, Radial Ball, 1/2 in Dia, Cast Iron, Set Screw
The Dayton 1A396 Flange Mount Bearing is a reliable and durable solution for various industrial and commercial applications. Featuring a radial ball bearing insert made of alloy steel, this bearing provides smooth and quiet operation, even at high speeds of up to 6,000 RPM. Its double-sealed design and NLGI #2 equivalent lubricant ensure long-lasting performance in temperatures ranging from -30°F to 200°F. Suitable for use in a wide range of industries, including aerospace, automotive, and manufacturing, this bearing is ideal for applications where precision and reliability are critical, such as in gearboxes, pumps, and other machinery.
Top product features:
- Double sealed to prevent dust and moisture from entering the bearing
- Radial ball bearing insert provides smooth rotation and reduced friction
- Fixed expansion type allows for precise positioning and stability
Top product applications:
- General purpose industrial bearing applications
- Electric motor support
- Pump and compressor mounting
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Zinc Die Cast, Housing Type Rhombus, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,000 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -30 Degrees F, Mount Hole Center-to-Center Height 2 1/2 in, Number of Mount Holes 2, Overall Height 1 1/16 in, Overall Length 3 1/4 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.40
- Package Height: 4.60
- Package Weight: 0.40
Product info last updated on January 31, 2026 6:08am UTC
Category: Bearings, V-belts and Power Transmission Equipment
