Pump, Pedestal, Inlet/Outlet 1 In MPN:3ACB2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0617775

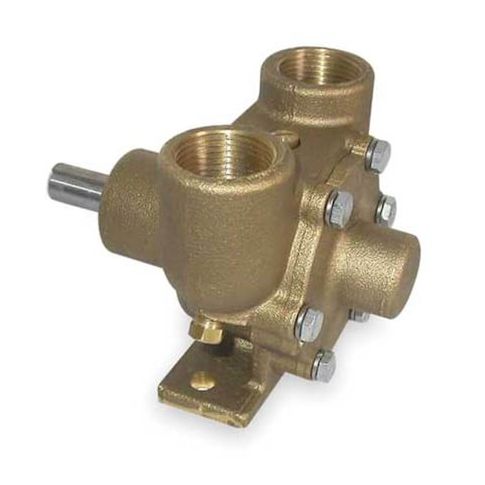

Pump, Pedestal, Inlet/Outlet 1 In
This pedestal pump is designed for various applications, including industrial and commercial use. With a maximum flow rate of 20.5 gallons per minute and a self-priming feature, it can handle demanding tasks. The pump's brass housing and stainless steel shaft ensure durability and resistance to corrosion. Suitable for pumping a variety of liquids with viscosities up to 5,000 SUS, it can be used in water treatment, chemical processing, and other industries. Its compact design and close-coupled motor make it easy to install and maintain, providing a reliable and efficient solution for a range of pumping needs.
Top product features:
- Self-priming design allows for easy installation and reduced maintenance
- Impeller pump design provides a maximum flow rate of 20.5 gpm
- Close-coupled motor mounting design enables efficient and compact operation
Top product applications:
- Boiler feed systems
- Well water supply
- Filtration systems
Impeller Pump, Discharge Connection Size 1 in, Discharge Connection Type NPT, Feet of Head - Maximum 85 ft, Flow Rate - Maximum 20.5 gpm, Housing Material Brass, Impeller Material Buna-N, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Priming Self-Priming, Required Horsepower 1 hp, Shaft Material Stainless Steel, Shaft Outer Diameter 5/8 in, Viscosity - Maximum 5,000 SUS, Motor Mounting Type Close Coupled, Operating Pressure - Maximum 36.7 psi
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 8.50
- Package Height: 7.50
- Package Weight: 6.75
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 8, 2026 1:17am UTC
Category: Positive Displacement Pumps
