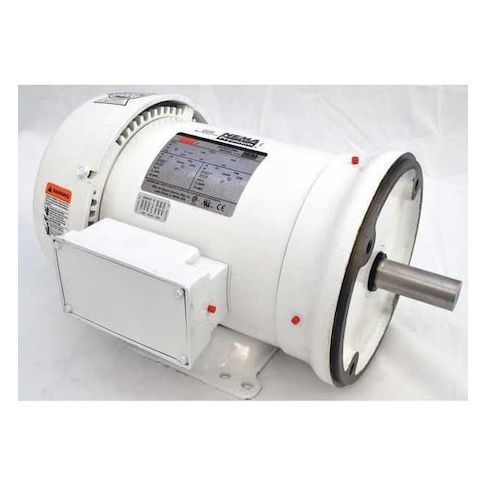

Washdown Motor, 3 Ph, TEFC, 5 HP, 1760 rpm MPN:5XAU1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0603757
Washdown Motor, 3 Ph, TEFC, 5 HP, 1760 rpm
This 5 HP, 3-phase totally enclosed fan cooled (TEFC) motor from Dayton is designed for harsh washdown environments, making it ideal for use in food processing, pharmaceutical, and other industries where high sanitation standards are required. Its continuous duty cycle and NEMA Design B rating ensure reliable operation in demanding applications. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor can withstand the rigors of frequent washing and high operating temperatures. Its compact design and rigid base make it easy to integrate into existing systems.
Top product features:
- Three-phase design
- Totally Enclosed Fan Cooled (TEFC) design
- Continuous duty cycle
Top product applications:
- Food and Beverage Processing
- Chemical Processing
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, Voltage 230/460V AC, Full Load Amps 12.5/6.2 A, 184TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.70
- Package Width: 13.90
- Package Height: 13.90
- Package Weight: 89.50
Product info last updated on January 26, 2026 7:26am UTC
Category: Motors
