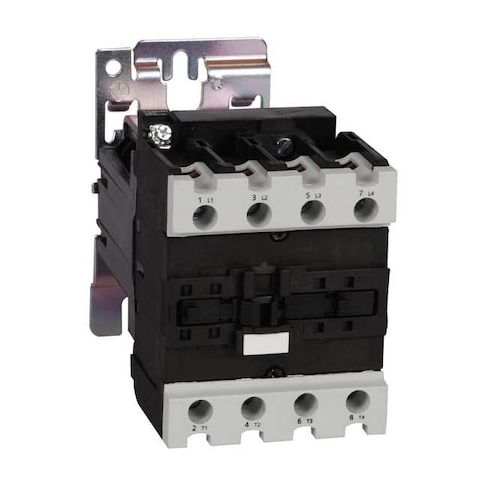

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing MPN:6FZH9

• The DAYTON - IEC Magnetic Contactor is a non-reversing, 4-pole contactor designed for industrial applications. It operates with a coil voltage of 24V DC and does not include an embedded surge suppressor. The contactor has no auxiliary contacts but includes four main contacts configured as two normally closed (2NC) and two normally open (2NO). With dimensions of 6.73 inches in depth, 3.34 inches in height, and 3.34 inches in width, it does not come with an enclosure.

  Key features of the DAYTON - IEC Magnetic Contactor include:

• - Non-reversing action: This means that the contactor can only be used to switch on or off
• it cannot reverse the direction of motor rotation.
• - Coil Voltage: The coil operates at a voltage of 24V DC, which may be compatible with various electrical systems.
• - Main Contact Configuration: The configuration of two normally closed (2NC) and two normally open (2NO) main contacts allows for versatile control schemes.
• - Load Capacity: It is rated for full load currents up to 40A for inductive loads and up to 60A for resistive loads.
• - Horsepower Ratings: It is designed for use with motors that have horsepower ratings of three HP at single-phase 120V AC and five HP at single-phase 240V AC.
• - Standards Compliance: This product is CSA and UL listed, indicating it has been tested according to the safety standards set by these recognized organizations.
