Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm MPN:1TRZ6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0581131

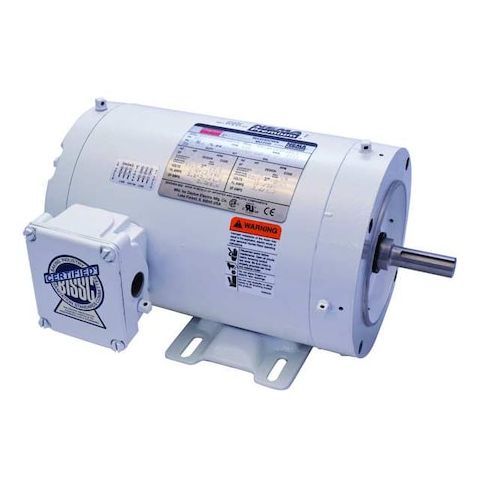

Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm
This 1 HP, 3-phase washdown motor from Dayton is designed for harsh environments, featuring a Totally Enclosed Non-Ventilated (TENV) enclosure and a high service factor of 1.15. Its continuous duty cycle and NEMA Design B rating make it suitable for applications such as food processing, chemical handling, and pharmaceutical manufacturing. With a high RPM of 1725, this motor provides efficient power and can be used in a variety of mounting positions. Its compact size and rigid base make it easy to integrate into existing systems, offering a reliable and durable solution for demanding industrial applications.
Top product features:
- Three-phase operation
- Totally enclosed non-ventilated (TENV) design
- Continuous duty cycle operation
Top product applications:
- Washdown motors are commonly used in food processing plants for equipment such as conveyor systems and pumps.
- Washdown motors are used in pharmaceutical manufacturing facilities for equipment such as mixers and blenders.
- Washdown motors are used in breweries for equipment such as pumps and conveyors that require frequent cleaning.
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 11.50
- Package Height: 10.90
- Package Weight: 35.19
Product info last updated on February 5, 2026 7:15am UTC
Category: Motors
