Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame MPN:5K411
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0578837

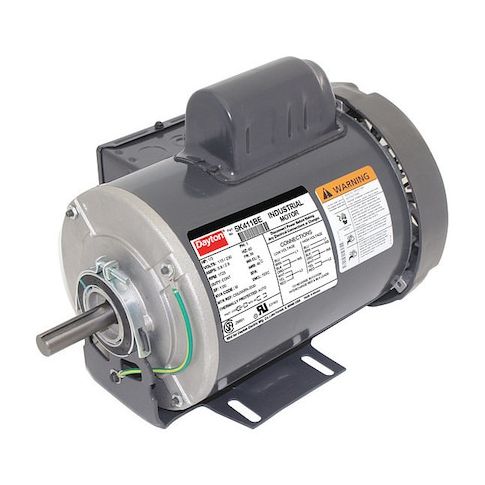

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame
This 1/3 hp capacitor-start general purpose motor is designed for a variety of applications, including industrial and commercial use. Its single-phase motor design and 115/230V AC voltage make it suitable for a range of equipment, from pumps and fans to conveyors and machinery. The motor's 1,725 RPM and continuous duty cycle ensure reliable operation, while its totally enclosed fan-cooled design provides protection from dust and moisture. With a maximum ambient temperature of 40°C and a motor service factor of 1, this motor is built to last, making it an ideal choice for demanding applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced noise
- Motor Shaft Keyed for secure and reliable mounting
- Continuous Duty Cycle capability for uninterrupted operation
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.8/2.9 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 23.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 4, 2026 3:10pm UTC
Category: Motors
