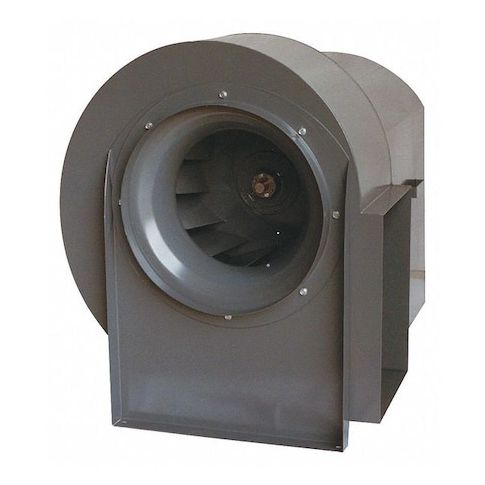

Backward-Inclined Industrial Blower (3C049) MPN:3C049

• The DAYTON 3C049 Backward-Inclined Blower is a belt-driven steel blower designed for heating, air conditioning, ventilating, and similar systems operating under low to medium pressures. This unit supports a maximum airflow of 13,940 cfm and can handle inlet air temperatures up to 250°F. It features a backward-inclined steel wheel with a 24-1/2 in diameter and operates within a fan speed range of 870 to 1,485 RPM. The blower housing is made from gray epoxy-coated steel and provides multiple discharge positions for installation flexibility. This model is supplied unassembled and does not include a motor or drive package.

  Key Features:

  • - Wheel Type and Material: Backward-inclined steel wheel, 24-1/2 in diameter, 12 in width
  • - Drive Type: Belt drive configuration without drive package
  • - Airflow Range: 5,356 to 13,940 cfm
  • static pressure up to 4-1/2 in wc
  • - Motor Compatibility: 2 to 10 hp motor range (motor not included)
  • - Operating Temperature: Handles inlet air up to 250°F
  • ambient up to 104°F
  • - Fan Speed: 870 to 1,485 RPM
  • - Construction: Steel housing with gray baked polyester epoxy finish
  • - Mount Type: Motor mount design
  • includes epoxy-coated steel weatherproof drive cover
  • - Bearings: Pillow block ball bearings
  • - Discharge Positions: Six configurations including top, bottom, angular, and horizontal orientations
  • - Dimensions: 47-7/8 in H × 42-7/8 in W × 47-3/8 in D
  • - Standards: AMCA Air Performance Certified
  • meets NEC and OSHA standards
  • - Features: Dynamically balanced wheels for Class I performance, fixed-sheave drive, single inlet design
  • - Warranty: 1-year limited manufacturer warranty
