Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145T Frame MPN:6K828
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0549902

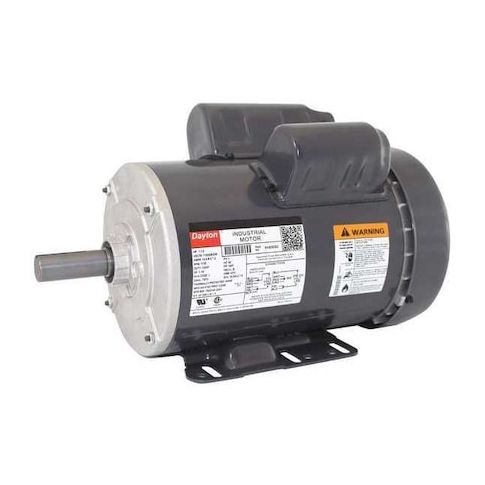

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145T Frame
The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. With a 1 1/2 hp horsepower and 1,725 RPM, it's ideal for use in industrial settings, such as manufacturing, processing, and material handling. The motor's totally enclosed fan-cooled design provides excellent protection against dust and moisture, while its single-phase design makes it easy to install and maintain. Its continuous duty cycle and 1.15 service factor ensure reliable operation in demanding environments. Suitable for use in 115/208-230V AC voltage systems, this motor is a great choice for a wide range of applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reliability
- Single Phase motor design for use in applications with single-phase power sources
- Continuous duty cycle capability for long-term operation without overheating
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.4/8-7.2 A, 145T Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 15, 2026 8:19pm UTC
Category: Motors
