Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm MPN:2RKZ2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0520134

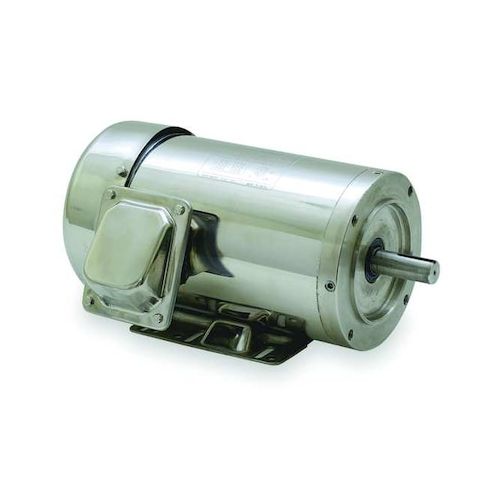

Washdown Motor, 3 Ph, TEFC, 10 HP, 1760 rpm
The Dayton 10 HP three-phase washdown motor is designed for demanding applications in harsh environments. Its totally enclosed fan-cooled (TEFC) design and Class F insulation ensure reliable operation in temperatures up to 40°C. Suitable for continuous duty, this motor can be used in a variety of applications, including food processing, chemical handling, and pharmaceutical manufacturing. Its compact size and robust construction make it ideal for use in tight spaces and high-traffic areas. With a service factor of 1.15, this motor provides added reliability and peace of mind for operators and maintenance personnel.
Top product features:
- Three-phase design
- Totally enclosed fan-cooled motor enclosure
- Continuous duty cycle
Top product applications:
- Pump motor for chemical processing plants
- Washdown motor for food processing facilities
- High-humidity environment motor for manufacturing plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 24.4/12.2 A, 215TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.90
- Package Width: 16.00
- Package Height: 15.80
- Package Weight: 219.00
Product info last updated on February 6, 2026 2:20pm UTC
Category: Motors
