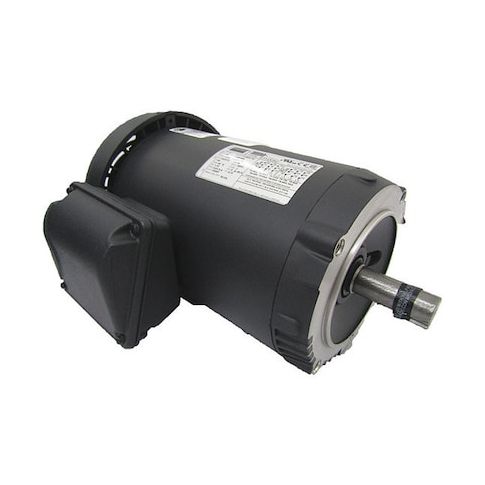

Three-Phase General Purpose Motor, 1 HP, 145TC Frame, 230/460V AC Voltage, 1, 140 Nameplate RPM MPN:4THX5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0496255
Three-Phase General Purpose Motor, 1 HP, 145TC Frame, 230/460V AC Voltage, 1, 140 Nameplate RPM
This 1 HP, 145TC frame, three-phase general purpose motor is designed for a wide range of applications, including industrial equipment, pumps, and fans. Its totally enclosed fan cooled motor enclosure design provides reliable operation in harsh environments. With a nameplate RPM of 1,140 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks. Its high efficiency of 82.5 percent and continuous duty rating make it an ideal choice for applications requiring consistent performance. Suitable for use in industrial settings, this motor is also CSA and UL certified for added assurance.
Top product features:
- Three-Phase Motor Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Ball Motor Bearings
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,140, Frame 145TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.3/1.7 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 11.70
- Package Height: 7.90
- Package Weight: 41.50
Product info last updated on February 11, 2026 9:46am UTC
Category: Motors
