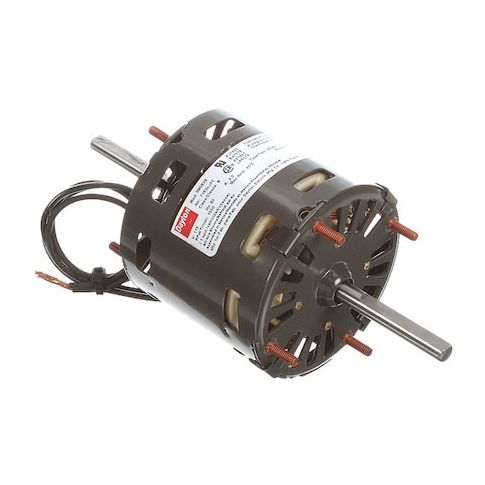

HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3 MPN:71636952M
HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3
This Dayton HVAC motor is a reliable and efficient solution for various applications, including residential and commercial heating and cooling systems. With a 1/20 HP rating and 1550 rpm, it provides precise control over airflow and temperature. The motor's single-phase design and shaded pole construction make it suitable for a wide range of uses, from air handlers to unit heaters. Its compact size and lightweight design make it easy to install and maintain. The motor's continuous duty cycle and automatic thermal protection ensure reliable operation and extended lifespan. Ideal for use in residential and commercial settings, this motor meets the demands of modern HVAC systems.
Top product features:
- Single Phase operation allows for efficient use in various applications
- Shaded Pole motor design provides a reliable and quiet operation
- Continuous duty cycle enables the motor to run for extended periods without overheating
Top product applications:
- HVAC fan motor for residential applications
- Small appliance motor for refrigerators and freezers
- Pump motor for small pool or fountain systems
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 2.1 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 8.40
- Package Height: 3.70
- Package Weight: 3.90
Product info last updated on January 14, 2026 2:59am UTC
Category: Motors
