Standard Duty Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 24 in Blade Dia, 208-230/460V MPN:1VCG7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0483402

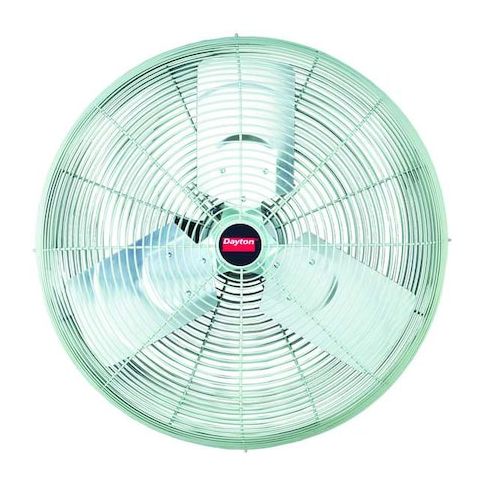

Standard Duty Industrial Fan, Ceiling, IBeam, Pedestal, Wall Mount, 24 in Blade Dia, 208-230/460V
This Dayton Standard Duty Industrial Fan is a high-performance air circulator designed for industrial applications. Its 24-inch blade diameter and 5750 CFM airflow capacity make it ideal for large spaces, such as warehouses, factories, and commercial buildings. The fan's stationary, non-oscillating design and 1/2 horsepower motor provide consistent airflow and efficient energy use. Mountable on walls, ceilings, pedestals, or I-beams, this versatile fan is perfect for applications where airflow is critical, such as in server rooms, data centers, or areas with high humidity. Its durable construction and easy installation make it a reliable choice for industrial settings.
Top product features:
- Blade diameter of 24 inches provides a wide coverage area for air circulation.
- Stationary and non-oscillating design allows for consistent airflow in a single direction.
- High airflow rate of 5750 CFM enables efficient air circulation in large spaces.
Top product applications:
- Ceiling Mount
- Pedestal Mount
- IBeam Mount
Air Circulator, Blade Dia. 24 In., Stationary, Non-Oscillating, Speeds 1, Voltage 208-230/460, 3 Phase, CFM High 5750, Air Velocity (FPM) @ 20 Ft. 585, Motor HP 1/2, Motor RPM 1075, Operating Amps 2.48-2.48/1.24, Mounting Location Wall, Ceiling, Pedestal or IBeam, Fan RPM 1075, Industrial, Assembled Assembled, Outside Dia. 27 In., Includes Mounting Bolts, Conduit Box
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.80
- Package Width: 26.80
- Package Height: 17.80
- Package Weight: 40.75
Product info last updated on January 24, 2026 6:05pm UTC
Category: Fans
