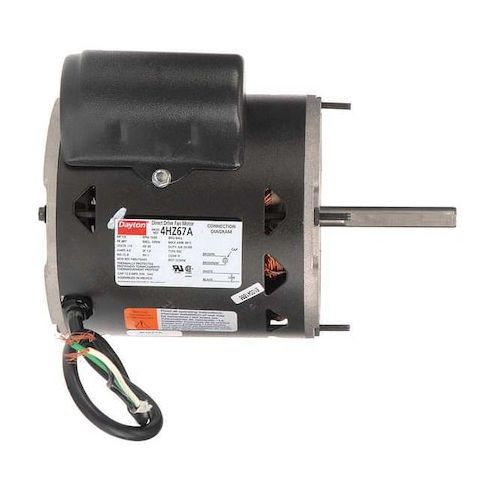

Motor, PSC, 1/3 HP, 1650 RPM, 115V, 48Y, OAO MPN:4HZ67
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0471116
Motor, PSC, 1/3 HP, 1650 RPM, 115V, 48Y, OAO
This Dayton 1/3 HP PSC motor is a reliable and efficient solution for various applications. Suitable for use in fan and blower applications, it offers a high speed of 1650 RPM and a compact 48Y frame size. The motor's permanent split capacitor design ensures smooth and quiet operation, while its continuous duty cycle and thermal protection make it ideal for demanding environments. With a maximum ambient temperature of 40°C and a wide range of mounting options, this motor is versatile and easy to integrate into various systems, making it a great choice for industrial, commercial, and residential projects.
Top product features:
- Permanent Split Capacitor motor design
- 1/3 hp power output
- 1650 RPM motor speed
Top product applications:
- Air Handling Units
- HVAC Systems
- Industrial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,650 RPM, No. of Speeds 1, Voltage 115V AC, 4.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Replacement For Mfr. No. 4HZ23, 4HZ41, 4HZ43, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 9.50
- Package Height: 10.25
- Package Weight: 14.00
Product info last updated on January 31, 2026 10:09am UTC
Category: Motors
