WashdownMotor, 3hp, 1765RPMTC, 230/460VAC MPN:5XAU0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0470592

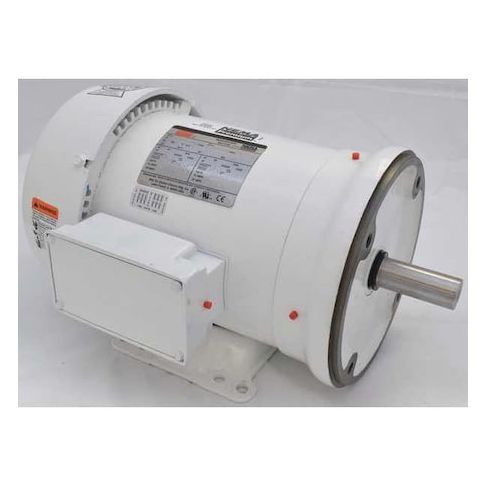

WashdownMotor, 3hp, 1765RPMTC, 230/460VAC
This Dayton Washdown Motor is designed for demanding applications where high levels of cleanliness and reliability are crucial. Its totally enclosed fan-cooled (TEFC) design and steel frame ensure durability and withstands harsh environments. With a continuous duty cycle and NEMA Design B rating, it's ideal for use in food processing, pharmaceutical, and chemical manufacturing facilities. The motor's 3 HP rating and 1760 RPM provide efficient power while its 1.15 service factor allows for overloading without compromising performance. Suitable for horizontal mounting and CW/CCW rotation, this motor is a reliable choice for applications requiring high cleanliness and precision.
Top product features:
- Totally Enclosed Fan Cooled design for improved protection against dust and water ingress
- Three-Phase motor design for efficient operation and reduced energy consumption
- Continuous duty cycle capability for uninterrupted operation in demanding applications
Top product applications:
- Water Treatment Plants
- Food Processing Facilities
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, Voltage 230/460V AC, Full Load Amps 7.6/3.8 A, 182TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 13.80
- Package Height: 13.90
- Package Weight: 77.10
Product info last updated on February 24, 2026 7:41pm UTC
Category: Motors
