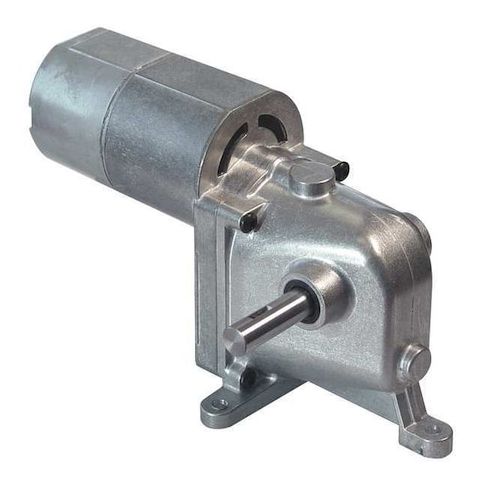

AC/DC Gearmotor, 4.5 rpm, 115V, Open Vented MPN:1LRA7
AC/DC Gearmotor, 4.5 rpm, 115V, Open Vented
This AC/DC gearmotor is designed for a wide range of applications, from industrial automation to medical equipment, where precise control and reliability are crucial. With a nameplate speed of 4.5 RPM and a gear ratio of 1714:1, it provides a high torque output of 250 in-lb, making it ideal for applications that require slow and precise movement. The motor's universal AC/DC design allows it to operate on both AC and DC power, while its open-air-over enclosure provides excellent cooling and durability. Suitable for use in any angle, it's perfect for applications where space is limited, such as in medical devices, packaging machines, and more.
Top product features:
- Right Angle Shaft Orientation
- Universal AC/DC Motor Type
- Gear Ratio of 1714:1
Top product applications:
- Conveyor Systems
- Pumps for low-flow applications
- Material Handling Equipment
AC/DC Gearmotor, Shaft Orientation Right Angle, Output Location Right Hand, Motor Enclosure Open Air-Over, Operating Voltage 115V AC, Motor Type Universal AC/DC, Nameplate Speed 4.5 RPM, Maximum Torque 250 in-lb, Overhung Load Capacity 100 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 1714:1, Input Horsepower 1/6 hp, Motor Insulation Class B, Frequency 50 Hz, 60 Hz, Output Shaft Diameter 1/2 in, Bearing Type Porous Bronze Sleeve on Case, Sleeve on Motor
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 8.20
- Package Height: 6.40
- Package Weight: 6.80
Product info last updated on March 10, 2026 12:38am UTC
Category: Motors
