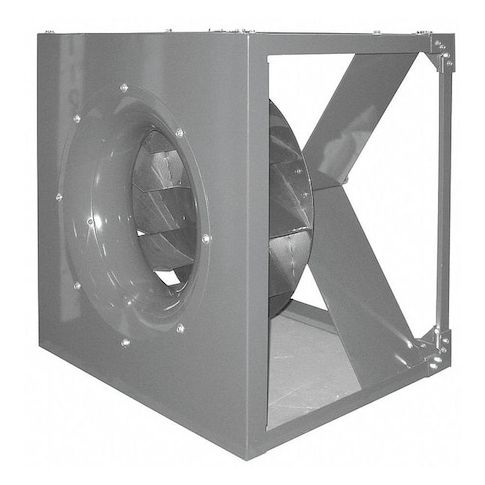

Plenum Fan, Whl Dia 22 In, Less Dr Pkg MPN:508226
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0457432
Plenum Fan, Whl Dia 22 In, Less Dr Pkg
The Dayton Plenum Fan is a high-performance, backward-curved fan designed for commercial and industrial applications. Its large 22-inch wheel diameter and belt drive system provide efficient airflow up to 5,420 cfm, making it ideal for ventilation systems, HVAC installations, and air circulation in large spaces. The fan's durable construction features a galvanized frame, aluminum wheel, and ball bearings for long-lasting performance. With a maximum static pressure of 1 1/2 inches wc and a maximum inlet air temperature of 150°F, this fan is perfect for use in a variety of industries, including manufacturing, healthcare, and education.
Top product features:
- Backward-Curved Wheel Design for Efficient Airflow
- Belt Drive for Quiet and Reliable Operation
- Maximum Static Pressure of 1 1/2 in wc for Effective Air Distribution
Top product applications:
- HVAC systems
- Air handling units
- Commercial and industrial ventilation systems
Plenum Fan, Wheel Type Backward-Curved, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 22 in, Minimum Airflow 1,644 cfm, Maximum Airflow 5,420 cfm, Maximum Static Pressure 1 1/2 in wc, Maximum Inlet Air Temperature 150 Degrees F, Shaft Diameter 1 1/8 in, Bearing Type Ball, Wheel Material Aluminum, Wheel Width 22 in, Frame Material Galvanized, Inlet Diameter 13 1/2 in, Rough Opening Height 30 in, Rough Opening Width 30 in, Maximum Fan Speed 1,096 RPM
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.50
- Package Width: 32.00
- Package Height: 34.50
- Package Weight: 134.00
Product info last updated on February 1, 2026 12:37am UTC
Category: Blowers
