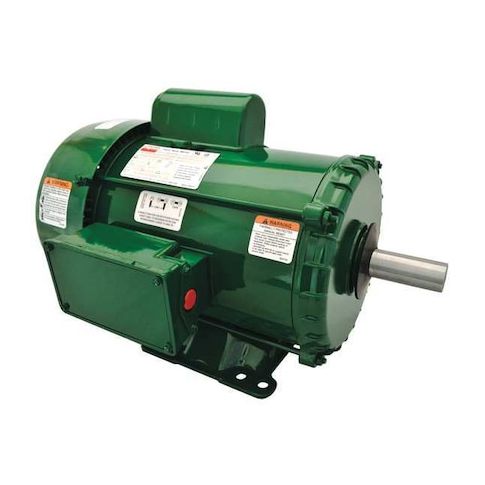

High Torque Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 1, 740 Nameplate RPM, 184T Frame MPN:6K610
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0453735
High Torque Farm Duty Motor, Capacitor-Start, 3 HP, 230V AC, 1, 740 Nameplate RPM, 184T Frame
This high-torque farm duty motor is designed for demanding agricultural applications, providing reliable operation and long service life. Its 3 HP, 230V AC motor delivers 1,740 nameplate RPM, making it ideal for powering farm equipment, pumps, and other high-torque applications. The capacitor-start design and totally enclosed fan-cooled enclosure ensure efficient cooling and protection from the elements. With a rigid base and horizontal mounting position, this motor is easy to install and maintain. Suitable for continuous duty cycles, it's perfect for farm use, including irrigation systems, grain handling equipment, and other high-torque applications.
Top product features:
- High Torque performance allows for efficient and effective operation of farm equipment
- Totally Enclosed Fan Cooled design provides a safe and reliable operating environment
- Capacitor-Start motor design enables a single-phase motor to achieve high starting torque
Top product applications:
- Pump and irrigation systems for agricultural use
- Industrial conveyor systems for heavy-duty applications
- Large-scale fans and blowers for ventilation and air circulation systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 3 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 14.5 A, 184T Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Green
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.80
- Package Width: 15.00
- Package Height: 12.30
- Package Weight: 75.00
Product info last updated on January 23, 2026 11:43am UTC
Category: Motors
