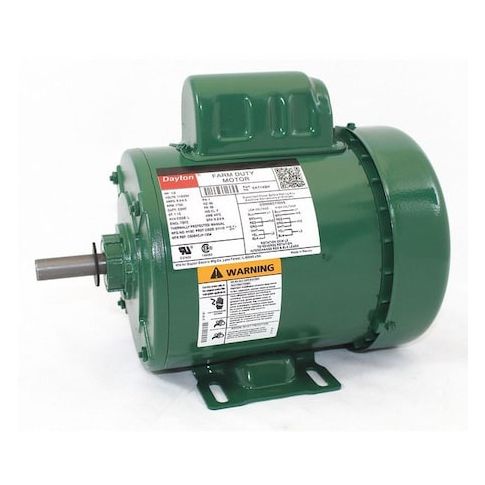

High Torque Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56Z Frame MPN:6K714
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0453717
High Torque Farm Duty Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56Z Frame
This High Torque Farm Duty Motor is designed for heavy-duty applications, providing reliable performance in demanding environments. With a 1/2 HP rating and 1,725 nameplate RPM, it's ideal for use in agricultural settings, such as irrigation systems, hay balers, and grain dryers. The capacitor-start design and steel construction ensure efficient operation and durability. The motor's totally enclosed fan-cooled design keeps it cool and quiet, while its rigid base and all-angle mounting position allow for flexible installation. Perfect for farmers and contractors who need a dependable motor for their equipment, this motor is built to last.
Top product features:
- High Torque design provides increased power and efficiency for demanding applications.
- Totally Enclosed Fan Cooled design protects the motor from dust and debris, ensuring reliable operation in harsh environments.
- Manual thermal protection allows for user intervention in case of overheating, extending the motor's lifespan.
Top product applications:
- Pumps and irrigation systems
- Fans and blowers for agricultural applications
- Grain elevators and conveyor systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 9.0/4.5 A, 56Z Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 26.60
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 31, 2026 4:40am UTC
Category: Motors
