Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1, 700 Nameplate RPM MPN:1YAZ4BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0423211

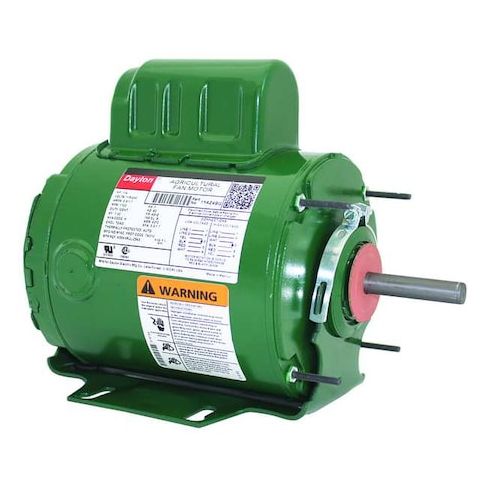

Agricultural Fan Motor, Permanent Split Capacitor, 1/4 HP, 115/230V AC, 1, 700 Nameplate RPM
This Dayton Agricultural Fan Motor is a reliable and efficient solution for agricultural applications, offering a permanent split capacitor design for smooth operation and long-lasting performance. With a 1/4 HP rating and 1,700 RPM, it provides the necessary power for ventilation and cooling in barns, greenhouses, and other agricultural settings. Its farm-duty design and totally enclosed air-over enclosure ensure durability and protection from the elements, making it an ideal choice for continuous use in demanding environments. Suitable for horizontal mounting, this motor is perfect for a variety of agricultural applications, including ventilation systems, drying equipment, and more.
Top product features:
- Permanent Split Capacitor design for efficient and reliable operation
- Totally Enclosed Air-Over motor enclosure for protection from dust and debris
- Continuous duty cycle for non-stop operation in agricultural applications
Top product applications:
- Ventilation in greenhouses and nurseries
- Drying crops after harvesting
- Air circulation in livestock facilities
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,700 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.3/1.7 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.70
- Package Width: 9.50
- Package Height: 10.60
- Package Weight: 18.99
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 22, 2026 2:43pm UTC
Category: Motors
