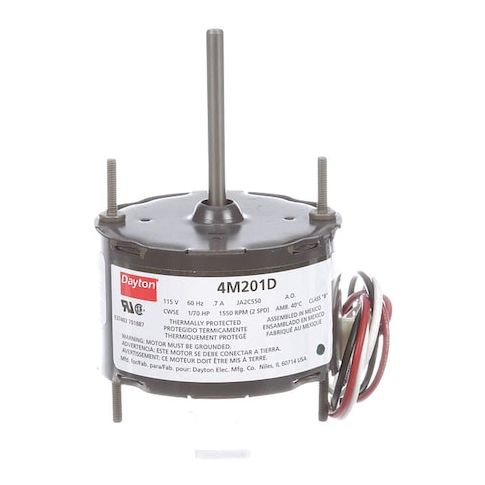

HVAC Motor, 1/70 HP, 1550 rpm, 115V, 3.3 MPN:71637607M
HVAC Motor, 1/70 HP, 1550 rpm, 115V, 3.3
This compact 1/70 HP HVAC motor from Dayton is designed for single-phase applications, delivering reliable performance and energy efficiency. With a shaded pole design and totally enclosed air-over enclosure, it operates safely and quietly in a variety of settings. Suitable for continuous duty cycles in temperatures up to 40°C, this motor is ideal for use in residential and light commercial HVAC systems, including air handlers, fans, and blowers. Its compact size and low weight make it easy to install and maintain, reducing labor costs and improving overall system efficiency.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure
- Single Phase Motor Design with Shaded Pole Construction
- Continuous Duty Cycle Operation
Top product applications:
- Residential Air Conditioning Units
- Commercial Air Handlers
- Small Industrial Fans
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/70 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 2, Voltage 115V AC, 0.65 A Full Load Amps, 3.3 Frame, Output Watts 11 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.38
- Package Width: 3.50
- Package Height: 3.50
- Package Weight: 2.30
