Washdown Motor, 3 Ph, TENV, 1/2 HP, 3460 rpm MPN:6WY32
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0397013

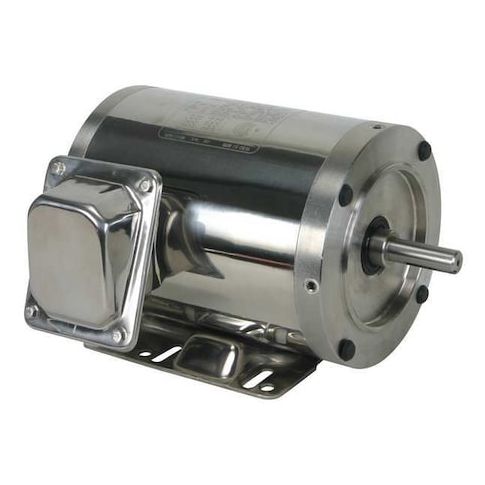

Washdown Motor, 3 Ph, TENV, 1/2 HP, 3460 rpm
This 1/2 HP, 3-phase washdown motor from Dayton is designed for harsh environments and demanding applications. Its totally enclosed non-ventilated (TENV) design protects against dust, water, and chemicals, making it ideal for use in food processing, pharmaceutical, and other industries where cleanliness is critical. With a continuous duty cycle and high service factor, this motor can handle heavy loads and maintain performance over time. Its compact size and lightweight design make it easy to integrate into existing systems, and its CW/CCW rotation options provide flexibility for various applications. Perfect for use in washdown areas or other high-humidity environments.
Top product features:
- Three-phase design
- Totally enclosed non-ventilated (TENV) motor enclosure
- Continuous duty cycle capability
Top product applications:
- Food Processing Machinery
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 3,460 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.6-1.5/0.75 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.70
- Package Width: 10.80
- Package Height: 9.40
- Package Weight: 30.70
Product info last updated on February 3, 2026 12:35am UTC
Category: Motors
