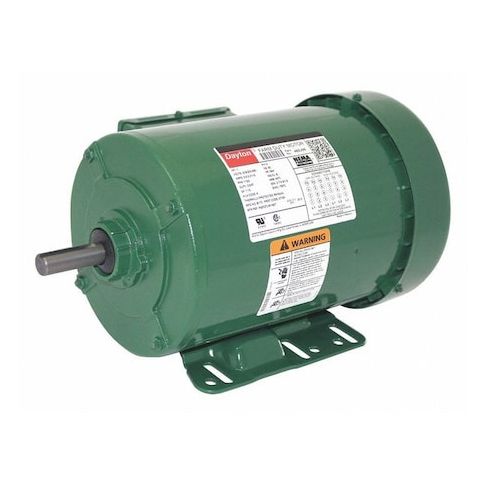

General Purpose Farm Duty Motor, 3-Phase, 1 HP, 208-230/460V AC, 1, 725 Nameplate RPM, 56H Frame MPN:48ZJ98
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0335559
General Purpose Farm Duty Motor, 3-Phase, 1 HP, 208-230/460V AC, 1, 725 Nameplate RPM, 56H Frame
This 3-phase, 1 HP farm duty motor from Dayton is designed for heavy-duty use in agricultural settings. With a nameplate RPM of 1,725, it provides reliable power for a variety of applications, including irrigation systems, pumps, and grain handling equipment. The motor's totally enclosed fan-cooled design ensures efficient cooling and protection from the elements, while its 1.15 service factor and manual thermal protection provide added reliability. Its compact 56H frame makes it easy to install in tight spaces, and its CW/CCW rotation allows for flexible mounting options. Perfect for continuous duty cycles in harsh environments.
Top product features:
- Three-phase operation provides power to the motor
- Totally Enclosed Fan Cooled design keeps the motor cool in harsh environments
- Continuous duty cycle allows for uninterrupted operation
Top product applications:
- Farm irrigation systems
- Pumping water for agricultural use
- Dairy farm equipment
Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.4-3.3/1.6 A, 56H Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 33.00
Product info last updated on February 10, 2026 1:52pm UTC
Category: Motors
