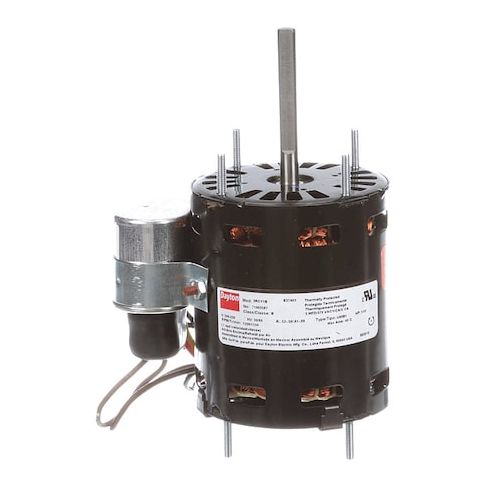

HVAC Motor, 1/10 HP, 1550 rpm, 208-230V, 3.3 MPN:71903587M
HVAC Motor, 1/10 HP, 1550 rpm, 208-230V, 3.3
This reliable 1/10 HP HVAC motor is designed for single-phase applications, offering a permanent split capacitor design for efficient operation. With a nameplate RPM of 1,550 and a voltage range of 208-230V, it's suitable for use in various HVAC systems. The motor's compact 3.3 frame and continuous duty cycle make it ideal for applications requiring high reliability and minimal maintenance. Its compact size and lightweight design also make it easy to install and integrate into existing systems, providing a cost-effective solution for heating, ventilation, and air conditioning applications.
Top product features:
- Single Phase Operation
- Permanent Split Capacitor Motor Design
- Continuous Duty Cycle
Top product applications:
- Packaged HVAC units
- HVAC systems in small homes or apartments
- Small room air conditioning units
HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.61-0.68 A Full Load Amps, 3.3 Frame, Output Watts 75 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.25
- Package Width: 4.75
- Package Height: 4.75
- Package Weight: 5.00
Product info last updated on March 17, 2026 2:12pm UTC
Category: Motors
