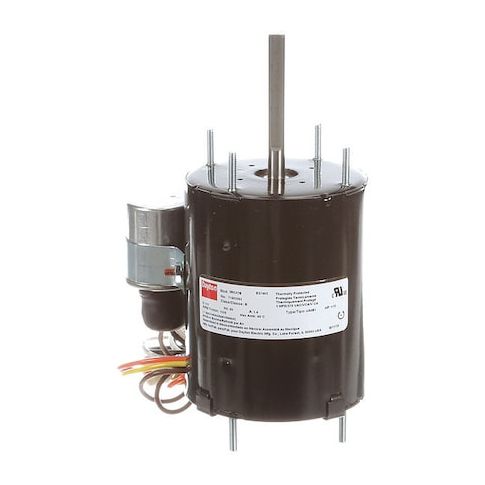

HVAC Motor, 1/10 HP, 1550 rpm, 115V, 3.3 MPN:71903593M
HVAC Motor, 1/10 HP, 1550 rpm, 115V, 3.3
This 1/10 HP, 115V HVAC motor from Dayton is a reliable and efficient solution for various applications. Suitable for continuous duty cycles in temperatures up to 40°C, it features a permanent split capacitor design for smooth operation and a totally enclosed air-over enclosure for added protection. With a maximum output of 75W and a low amp draw of 1.3A, this motor is perfect for small-scale HVAC systems, such as residential units or small commercial spaces. Its compact size and stud mounting type make it easy to integrate into existing systems, providing a cost-effective and hassle-free solution for heating and cooling needs.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure
- Continuous duty cycle operation
Top product applications:
- Air Handler Units
- Room Air Conditioners
- Package Units
HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.3 A Full Load Amps, 3.3 Frame, Output Watts 75 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 5.30
- Package Height: 3.60
- Package Weight: 5.83
Product info last updated on February 13, 2026 12:18pm UTC
Category: Motors
