Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 3505 rpm MPN:1TTA5BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0258544
Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 3505 rpm

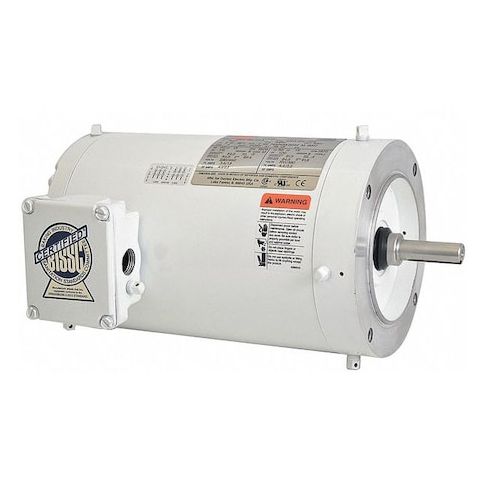

This 1.5 HP washdown motor from Dayton is designed for high-performance applications in harsh environments. Suitable for continuous operation, it features a totally enclosed non-ventilated (TENV) design to protect against dust and water. With a high service factor of 1.15, it can handle demanding workloads. The motor's high-speed operation (up to 3,505 RPM) and high efficiency make it ideal for use in food processing, chemical handling, and pharmaceutical manufacturing. Its compact design and CW/CCW shaft rotation provide flexibility for various mounting configurations, making it a versatile choice for a range of washdown applications.
Top product features:
- Three-phase operation
- Totally enclosed non-ventilated design
- Continuous duty cycle
Top product applications:
- Industrial laundry equipment
- High-pressure wash stations
- Food processing machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,505 RPM, Voltage 230/460V AC, Full Load Amps 3.6/1.8 A, 56C Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.60
- Package Width: 11.50
- Package Height: 11.20
- Package Weight: 44.05
Product info last updated on February 25, 2026 11:06pm UTC
Category: Motors
