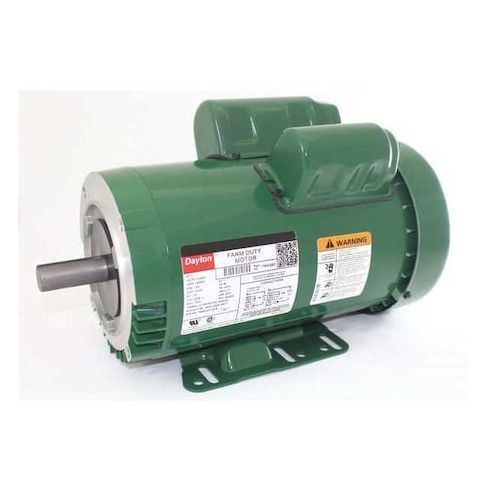

Capacitor-Start/Run High Torque Farm Duty Motor, 2 HP, 115/230V AC Voltage, 145TC Frame MPN:1TMW2BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0254125
Capacitor-Start/Run High Torque Farm Duty Motor, 2 HP, 115/230V AC Voltage, 145TC Frame
This 2 HP Capacitor-Start/Run High Torque Farm Duty Motor from Dayton is designed for demanding applications such as irrigation pumps, grain dryers, and other heavy-duty farm equipment. Its high torque and single-phase design make it ideal for starting and running large loads with ease. The motor's totally enclosed fan cooled design and steel frame ensure reliable operation in harsh environments. With a continuous duty cycle and manual thermal protection, this motor is built to last. Its compact size and easy mounting options make it perfect for a variety of farm and industrial applications, providing efficient and reliable power where it's needed most.
Top product features:
- High Torque design for increased starting and running power
- Totally Enclosed Fan Cooled design for improved heat dissipation and reduced maintenance
- Manual thermal protection for user-adjustable temperature control and motor safety
Top product applications:
- Pump applications
- Well pump motor
- Sump pump motor
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 18.9/9.4 A, 145TC Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 17, 2026 12:54pm UTC
Category: Motors
