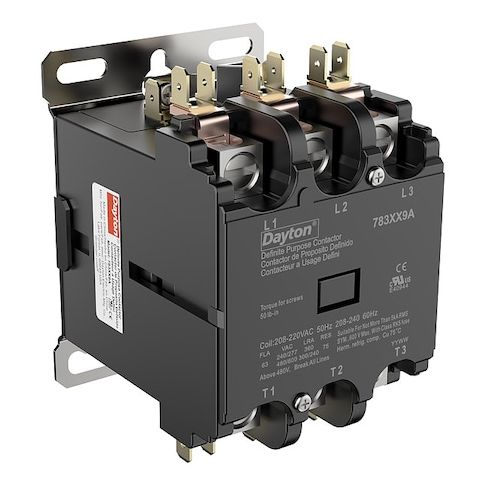

Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Box Lug MPN:783XX9
Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P, Non-Reversing, 3 Phase, Box Lug
The Dayton Definite Purpose Magnetic Contactor is a reliable and efficient solution for controlling 3-phase power in a variety of industrial and commercial applications. This non-reversing magnetic contactor is designed for use in 208-240V AC systems and can handle up to 10 horsepower at 240V AC and 5 horsepower at 120V AC. With a compact design and easy-to-install features, it's ideal for use in lighting control systems, HVAC applications, and other industrial equipment. By providing smooth and reliable operation, this contactor helps to increase productivity and reduce downtime, making it a valuable addition to any industrial or commercial setting.
Top product features:
- Magnetic Contactor provides a non-reversing operation.
- LED Lighting Current Rating is not applicable, indicating the product is designed for high-wattage applications.
- The product can handle a full load current of 75 A for resistive loads and 63 A for inductive loads.
Top product applications:
- Motor control for a 10 hp single-phase 240V AC motor
- Motor control for a 5 hp single-phase 120V AC motor
- Powering a 3-phase AC load up to 75A resistive or 63A inductive
Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 208/240V AC, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 10 hp, Horsepower @ Single Phase - 120V AC 5 hp, Full Load Current - Resistive 75 A, Full Load Current - Inductive 63 A
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.50
- Package Height: 3.30
- Package Weight: 1.53
Product info last updated on January 14, 2026 4:25pm UTC
Category: Industrial Electrical Controls and Automation
