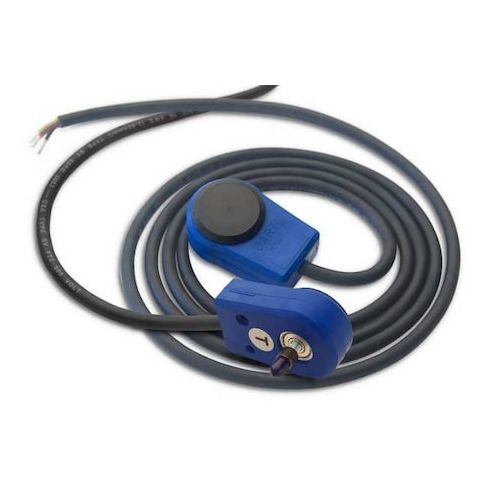

PulseGenerator, 10 Pulse/Rev, 4.5 to 24vdc MPN:PU-20E
PulseGenerator, 10 Pulse/Rev, 4.5 to 24vdc
The PulseGenerator from Dart Control is a reliable and versatile solution for monitoring shaft RPM in various industrial applications. This compact device provides current sinking square-wave pulses in direct proportion to shaft RPM, making it ideal for use in motor control, speedometers, and other speed measurement systems. With a robust design featuring stainless steel ball bearings and a molded Santoprene rubber housing, the PulseGenerator can withstand harsh environments and operate effectively in temperatures ranging from -10 to 45°F. Its compact size and easy mounting make it a convenient choice for applications requiring precise speed measurement.
Top product features:
- Provides Current Sinking Square-wave Pulses
- Frequency Proportional to Shaft RPM of Unit to Which It is Mounted
- Pick-up Mounts with a #10-32 Screw Directly to Motor Shaft Being Monitored
Top product applications:
- Motor Testing and Calibration
- Automotive Speedometer Calibration
- Industrial Motor Control Systems
Pulse Generator, Provides Current Sinking Square-wave Pulses with Frequency Proportional to Shaft RPM of Unit to Which It is Mounted, Pick-up Mounts with a #10-32 Screw Directly to Motor Shaft Being Monitored, 10 Pulses per Revolution, Input Voltage 4.5 to 24 VDC, Max RPM 5000, Output Cable Length 6 Ft, 3 Wire 18 AWG, Stainless Steel Ball Bearings, Operating Temp -10 to 45 Degrees F, Molded Santoprene Rubber Housing
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 4.90
- Package Height: 2.60
- Package Weight: 0.45
